Cement Rotary Dryer

Cement Rotary Dryer

Model: Φ1.0×10 - Φ3.6×36 (m)



Capacity: 1 - 40 (t/h)



Applied material: cement, clay, coal, etc.



Application: cement, coal, mine industry, etc.

Whatsapp: +86 18037866379
Send e-mail: mic@zkcorp.com
Leave a Message
Chat Online

Introduction

Cement rotary dryer is suitable to dry metallic and nonmetallic minerals, clay in cement industry and coal in coal mine, etc. Characteristics of cement rotary dryer include high drying capacity, smooth rotation, low energy consumption and easy operation.

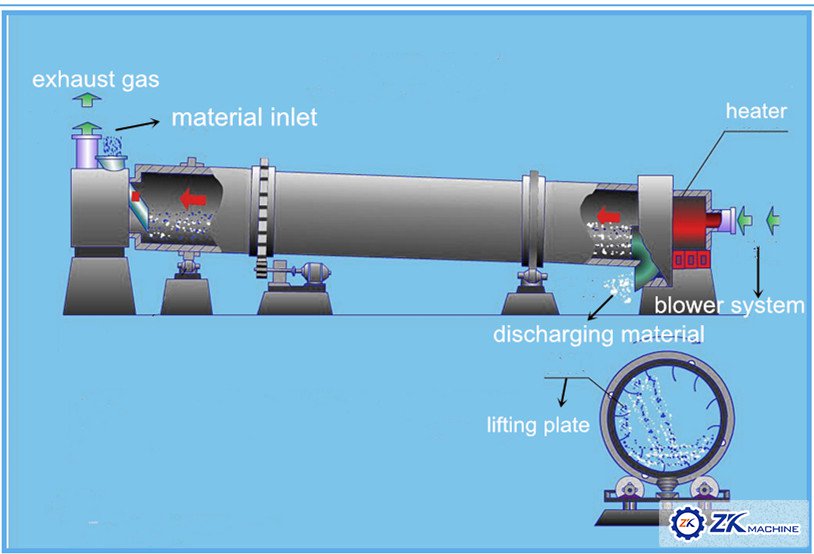

Flowcart of the Cement Dryer


Features

1. Rotary drum dryer is a common and wide using drying device in mining industry, wood industry, pellet industry, chemical industry, etc.

2. It is suitable for drying metal powder, mining powder, clay, coal, sand, sawdust, slurry, slag, tailings and other small particles.

3. It can dry the raw materials with moisture of 40-70%, and reduce the moisture to 8-12%.

4. It is formed of body roller, lifting blades, driving device, supporting device and sealing ring.

5. And it has the features of high efficiency, high drying strength and easy operation, which is an ideal equipment for drying high humidity materials.

Parameter

MODEL CAPACITY (t/h) SLOPE (%) GEARBOX MOTOR POWER (kW)
Φ1.0×10m 1-2 5 ZQ400 YCT200-4B 7.5
Φ1.2×12m 2-3 5 ZQ500 YCT225-4A 11
Φ1.5×15m 3-5 5 ZQ500 YCT225-4B 15
Φ1.8×18m 4-6 4 ZQ750 YCT250-4B 22
Φ2.0×20m 7-9 3.5 ZQ750 YCT280-4A 30
Φ2.2×22m 8-10 3.5 ZQ850 YCT315-4A 37
Φ2.4×24m 12-15 3.5 ZQ850 YCT315-4B 45
Φ2.8×28m 16-22 3.5 ZS145 YCT355-4A 55
Φ3.0×30m 20-25 3.5 ZS165 YCT355-4B 75
Φ3.2×32m 28-32 3.5 ZL130 YCT355-4C 90
Φ3.6×36m 38-40 3.5 ZL130 YVF2-315L2-6 132
