Introduction

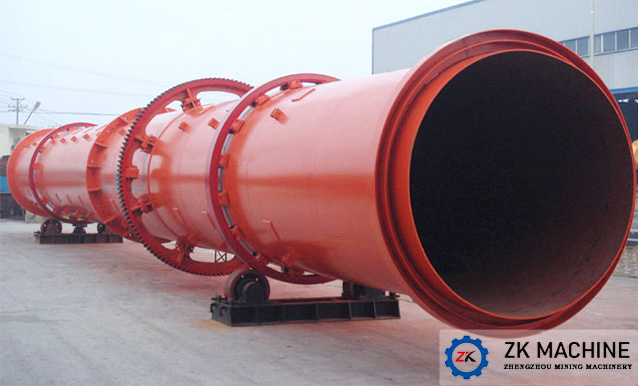

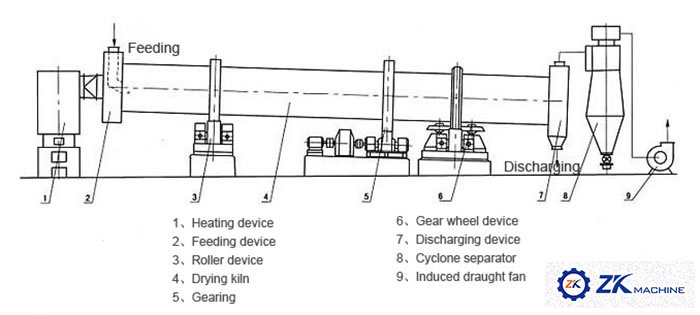

Rotary dryer is mainly used for the drying various materials.The material inside the rotary dryer has heat exchange with the high temperature flue gas through shell rotating and material lifting by lifter. The rotary dryer has many good characters like: high efficiency, big capacity, high running rate, saving energy, easy for maintenance, long working life. Variety angle of the lifter will increase the heating exchange rate and short drying time.  Feeding and discharging unit is installed with thermocouple to control drier temperature. The temperature change of drier's feeding end can be indicated by the thermometer to control the inner drier temperature (generally 250-350°C) Application of Rotary Dryer

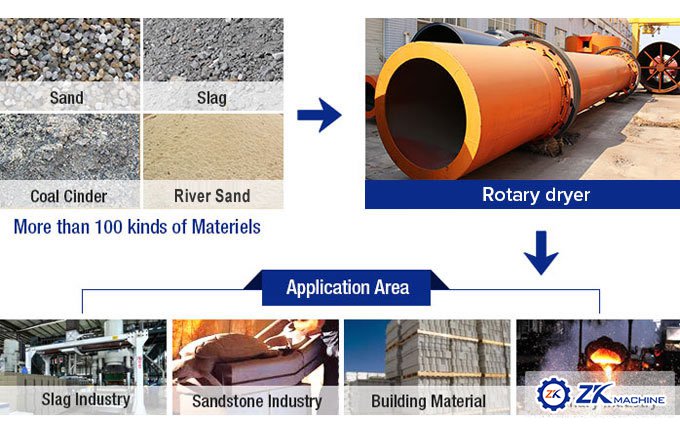

1. The rotary drum dryer made in our factory is mainly used for chemical, mining, metallurgy industry, like mineral, slag, coal, metal powder, clay, kieselguhr, kaolin, sand, lignite, slica sand...
2. The rotary drum dryer can used for agriculture and fertilizer industry, like straw, stalk, leaves, starch pulp, dregs of decoction, pomace, bagasse, slurry, organic fertilizer, inorganic fertilizer and others.
3. It also can used for drying the special materials, such as all kinds of crystalline, argil, magnetic powder, inorganic mud, lime slurry, aluminum mud, mineral mud and others.

Features

1. Shell adopts assembled structure, and its precision has been improved a lot, which will be convenient for  transport.

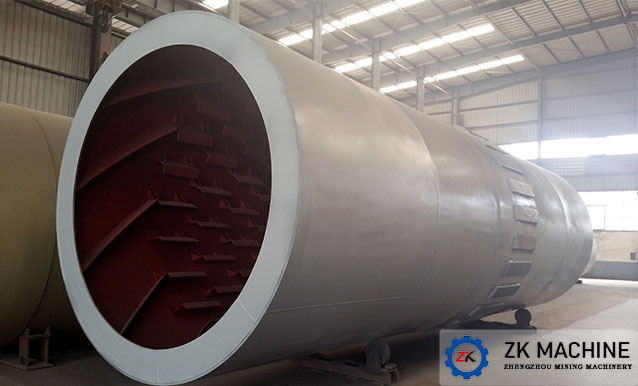

2. According to different fuel properties, suuitable raising plate will be used. This can make material receive more heat exchange.

3. Sealing is simple but efficient, which can improve capacity and improve whole machine performance.

4. Its matching combustion furnance is energy-saving type, which takes small area and is easy to adjuest.

Parameter

Model (m)	Shell				Capacity (t/h)	Motor	Power (kW)	Reducer
	Inner Diameter (mm)	Length (mm)	Slope (°)	Rev.Speed (rpm)		Motor Model
Ø1.2X12	1200	12000	1.8	5	2-5	YI60LM-6	11	ZQ500
Ø1.5X15	1500	15000	1.8	4.28	4-5	YI60L-6	18.5	ZQ650
Ø1.8X18	1800	18000	1.8	5	6-8	Y200LI-6	22	ZQ650
Ø2.0X20	2000	20000	2	3.38	7-10	Y200L2-6	30	ZQ650
Ø2.2X22	2200	22000	1.8	2.8	9-14	Y250M-6	45	ZQ650
Ø2.4X24	2400	24000	2.5	2.82	14-16	Y280S-6	55	ZQ750
Ø2.8X28	2800	28000	2.5	2.55	20-22	Y315S-6	90	ZL115
Ø3.0X30	3000	30000	2.5	2.69	22-24	Y315LI-6	132	ZL130
Ø3.2X32	3200	32000	2.5	2.6	24-26	Y315M-4	200	ZSY450
Ø3.6X36	3600	36000	2.5	2.51	30-40	Y315L2-4	315	ZL130
Ø4.0X40	4000	40000	2.5	2.09	40-45	YKK4003-4	400	ZSY630
Ø4.2X42	4200	42000	2.5	2.09	45-46	YKK4005-4	400	ZSY630
Ø4.5X45	4500	45000	2.5	1.92	46-50	YKK4502-4	500	MH3S230
Ø4.8X48	4800	48000	2.5	1.92	50-55	YKK4504-4	630	MH3S250
Ø5.0X 50	5000	50000	2.5	1.92	55-60	YKK4505-4	710	MH3S260
