Introduction

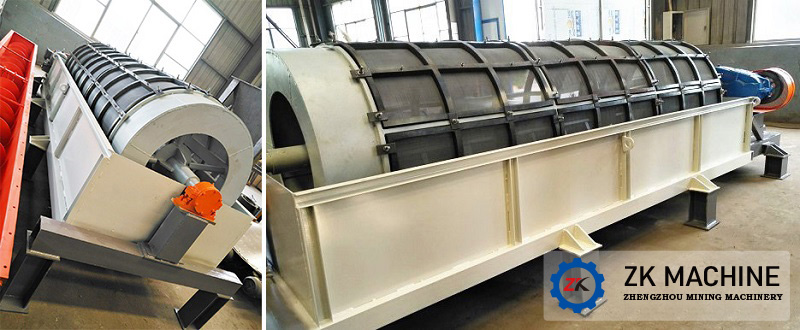

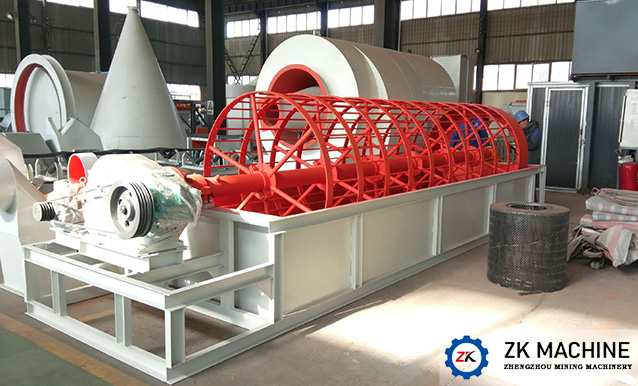

Trommel Screen (Rotary Drum Screen) is applied in processing varity particles grading. it is suitable for screening and classifying gravel, clay, sand, lump coal, coal dust, coal washing, lump, powder substance, etc.

Application Range of Trommel Screen:
1) Coal industry: separation of lump coal and pulverized coal.
2) Quarry: separation of sand and gravel.
3) Ore dressing plant: classification of different size stone, separation of stone, rock flour and soil.
4) Chemical industry: classification of different size material, and separation of powder material.
5) Mineral processing industry: classification of different size material, and separation of powder material.

Features

1. Designed to fit your operation
Trommel screen can be customized to meet different capacity and working site;

2. Free from pollution
Fully enclosed structure, no dust pollution, improve working conditions for operators as well;

3. Variable application range
Compost, chemical, coal, plastic, recycling, metallurgy, mineral-selecting, etc;

4. Superior design
Simple structure, easy maintenance, steady operation, low energy consumption.

Parameter

Model	Capacity (t)	Output (t/h)	Diameter (mm)	Length (m)	Powder (kw)
GTS-3	30000	10.4	Φ1200	3.5	4
GTS-5	50000	13.8	Φ1200	4	5.5
GTS-10	100000	27.8	Φ1400	5	7.5
GTS-15	150000	47.7	Φ1500	6	11
