ZSW Vibrating Feeder

Model: ZSW380x95 -- ZSW600x130



Max Feed Size: 500 - 750 (mm)



Capacity: 96 - 560 (t/h)

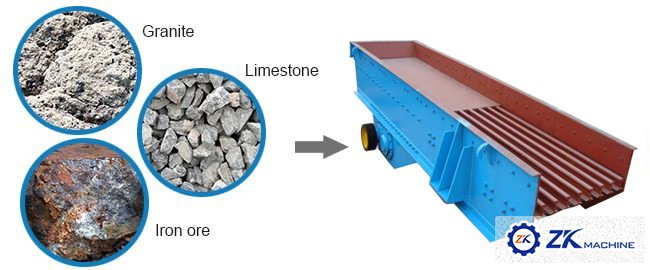

Application: Stone, Limestone, Clay, Dolomite, Bauxite, etc.

Whatsapp: +86 15237956296
Send e-mail: mic@zkcorp.com
Leave a Message
Chat Online

Introduction

ZSW Series Vibrating Feeder is mainly used to feed material into primary crusher evenly and continuously. Meanwhile, it can screen material and strengthen the capacity of the crusher. ZSW Series Vibrating Feeder is widely applied to the materials' breaking crafts, such as building materials, mine, coal, chemical industry. It is an ideal matching pats device of breaking machine.


Features

1. Smooth vibration;

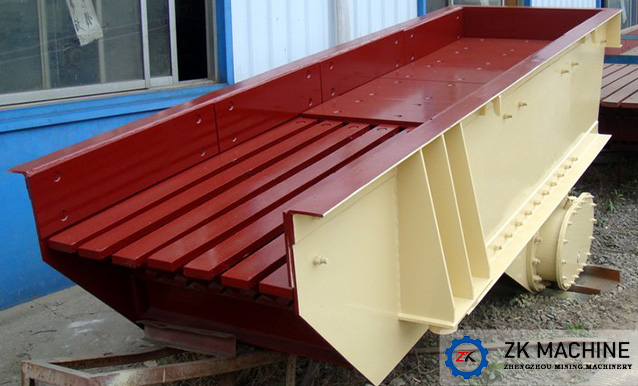

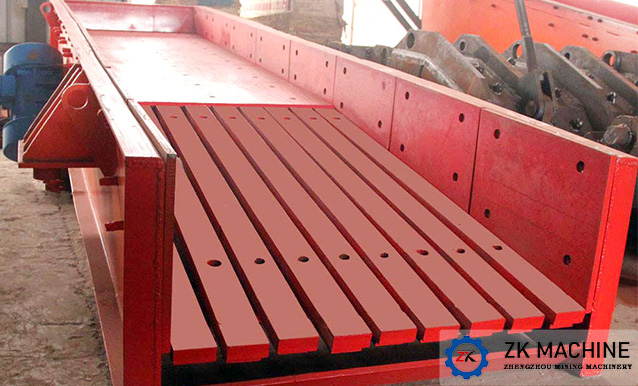

2. Special bar to prevent the block of row material;

3. The distance between bars is adjustable;

4. Stepless speed-regulated motor which could be additionally mounted so as to control the feeding capacity without frequent star-up of motor.

Parameter

Mode

Max  Feed  Size (mm)

Capacity (t/h)

Motor  Power (kw)

Size of Funne (mm)

ZSW-380×95

500

96-160

11

3800×950

ZSW-490×95

500

120-240

11

4200×1100

ZSW-490×110

580

120-280

15

4900×1100

ZSW-590×110

600

200-350

22

5900×1100

ZSW-600×130

750

400-560

22

6000×1300
