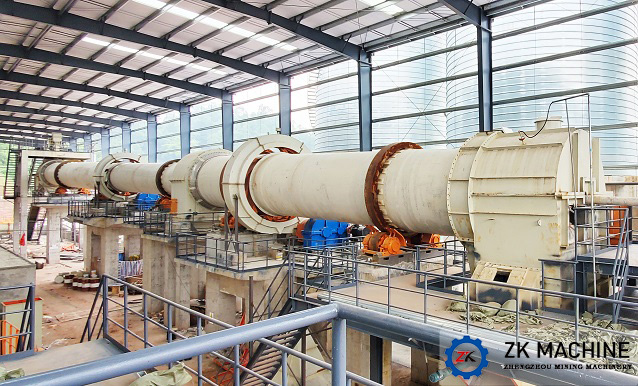

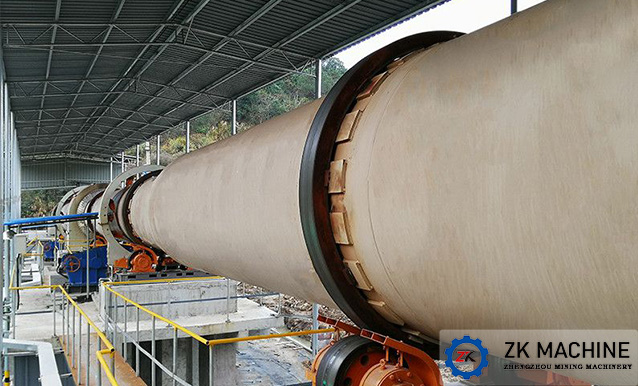

Rotary Kiln

Model: Φ1.6x32 - Φ5.1x72 (m)



Capacity: 2 - 104 (t/h)


Calcination Temperature: 700-1700℃



Applied material: Limestone, Dolomite, Bauxite, Chalk, Magnesite, Clay, Kaolin, Spodumene, etc.


Whatsapp: +86 15237956296
Send e-mail: mic@zkcorp.com
Leave a Message
Chat Online

Introduction

Rotary Kiln refers to calcining rotary kiln, it is widely used in the fields of building materials, metallurgy, chemical industry, environmental protection projects. According to the appearance, it is divided into variable diameter rotary kiln and same diameter rotary kiln; According to the different energy supply effects, it is divided into gas-fired rotary kiln, coal-fired rotary kiln, and mixed fuel rotary kiln, etc.


According to the different materials, we supply the following rotary kilns:
1. Cement Rotary Kiln and complete Cement Production Line;
2. Lime Rotary Kiln & Lime Vertical Shaft Kiln and complete Lime Production Line;
3. Dolomite Rotary Kiln and complete Magnesium Metal Production Line and Refractory Material Production Line;
4. Magnesite Rotary Kiln and complete Magnesium Oxide Production Line;
5. Bauxite Rotary Kiln and complete Oil Fracturing Proppant Production Line;
6. Clay Rotary Kiln & Sludge Rotary Kiln & Fly Ash Rotary Kiln and complete LECA (Lightweight Expanded Clay Aggregate) Production Line;
7. Spodumene Rotary Kiln & Lepidolite Rotary Kiln for Lithium Carbonate Production Line;
8. Zinc Oxide Rotary Kiln;
9. Solid Hazardous Waste Rotary Kiln;
10. Kaolin Rotary Kiln;
11. Petroleum Coke Rotary Kiln;
12. Chalk Rotary Kiln;
13. Gypsum Rotary Kiln; and so on.
Rotary Kiln Structure:

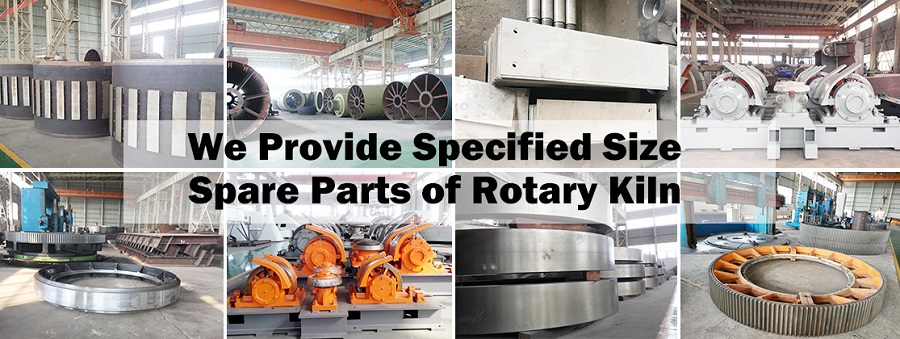

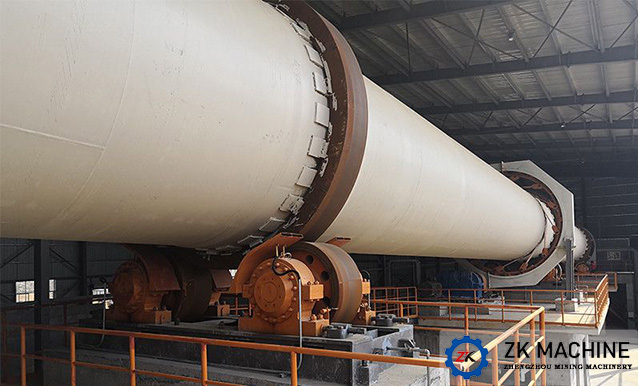

The rotary kiln is composed of cylinder shell, driving gears, roller supporting device with thrust roller, kiln liner and kiln tail sealing equipment, kiln head hood, driving gear unit, movable kiln hood, sealing device at kiln inlet and combustion device etc. We could supply all rotary kiln spares parts according to your drawing.

Features

1. New type technology is adopted by main driving system. Compared with traditional magnetic and DC speed regulation, its main driving system has the advantages like energy saving, environmental, wide speeding adjusting range, high performance and stable operation.

2. After the welding of bases for supporting devices of supporting roller and catching roller, vibration aging treatment should be applied for remove the welding stress. Then, use vertical lathe and boring-milling machine for integration fabrication. This process can guarantee the requirement of fabrication precision and dimension & location tolerance. Installation accuracy of rotary kiln is obviously improved.

3. Temperature measuring point is reserved at bearing base of supporting roller. It is mainly used for automation detection of kiln operation status by insert the measuring device.


Parameter

Model

Capacity

(t/h)

Speed

(rpm)

Slope

(%)

Support No.

Gearbox

 Motor model

Power

(kw)

Remark

Φ1.6×32m

2

0.58-2.85

4

3 set

ZQ75-50

YCTZ50-4A

18.5



Φ1.6/1.9×36m

2.5~3

0.53-1.59

4

3 set

ZQ110-7

YCTZ50-4B

22



Φ1.9×39m

3~3.5

0.53-1.59

4

3 set

ZQ125-7

YCT315-4A

37



Φ2.2×38m

5~6

0.214-1.64

3.5

3 set

 Main ZS125-5-II

Main YCT315-4A

37

Auxiliary ZQ40-40

Auxiliary Y112M-4

4

Φ2.2×45m

4~5

0.214-1.64

3.5

3 set

 Main ZS125-5

Main YCT315-4B

45



Auxiliary ZQ40-40

Auxiliary Y112M-4

4

Φ2.5×40m

6~7

0.62-1.5

3.5

3 set

 Main ZS165-5

Main YCT355-4A

55

Auxiliary ZS50-1

Auxiliary Y160M-6

7.5

Φ2.5×50m

5~6

0.62-1.5

3.5

3 set

 Main ZS165-5

Main YCT355-4A

55



Auxiliary ZS50-1

Auxiliary Y160M-6

7.5

Φ2.8×43m

7~8

0.62-1.5

3.5

3 set

 Main ZS165-6

Main YCT355-4B

75

Auxiliary ZS50-1

Auxiliary Y160L-6

11

Φ2.8×55m

6~7

0.62-1.5

3.5

3 set

 Main ZS165-6

Main YCT355-4B

75



Auxiliary ZS50-1

Auxiliary Y160L-6

11

Φ3×50m

9~10

0.5-1.5

3.5

4 set

 Main ZS165-3

Main ZSN-280-11B

125

Auxiliary ZS50-1

Auxiliary Y160L-6

11

Φ3×60m

7~8

0.5-1.5

3.5

4 set

 Main ZS165-3

Main ZSN-280-11B

125



Auxiliary ZS50-1

Auxiliary Y160L-6

11

Φ3.2×53m

10~12

0.4-1.5

3.5

3 set

 Main ZL130-16

Main ZSN4-280-11B

125

Auxiliary ZL50-10

Auxiliary Y180L-4

22

Φ3.2×64m

8~10

0.4-1.5

3.5

3 set

 Main NZS995-28VBR

Main ZSN4-280-21B

160



Auxiliary ZL50-9-2

Auxiliary Y180L-6

15

Φ3.5×70m

12~14

0.4-1.5

3.5

3 set

 Main ZSY500-40

Main ZSN-315-072

250



Auxiliary ZSY180-31.5

Auxiliary Y180L-4

22

Φ3.6×55m

14~16

0.4-1.5

3.5

3 set

 Main ZSY500-40

Main ZSYN-315-072

250

Auxiliary ZL65-16

Auxiliary Y180L-4

22

Φ3.8×58m

18~20

0.4-1.5

3.5

3 set

 Main ZSY500-40

Main ZSN315-072

250

Auxiliary ZL50-14

Auxiliary Y180L-4

22

Φ4.0×60m

104

0.4-1.5

3.5

3 set

 Main ZSY630-35.5

Main ZSN4-355-092

315

Auxiliary ZL65-16

Auxiliary Y200L-4

30

Remark:According to the requirement, the kiln length and driving system can be revised.
★ means the rotary kiln match with vertical pre-heater
Main spare parts is 1. Sealing plate, 2. Oil sealing, 3. Nylon pin, 4. Rubber block, 5. Kiln head back plate.
