Cement Ball Mill

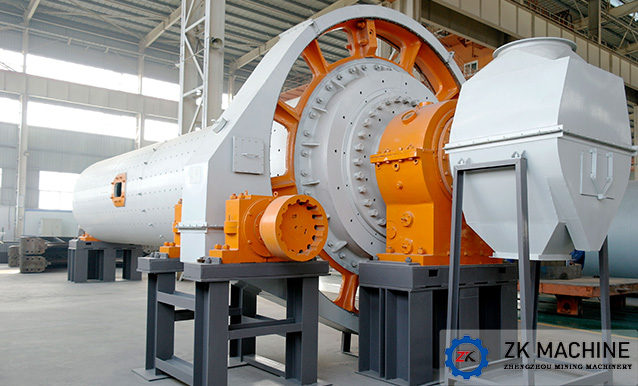

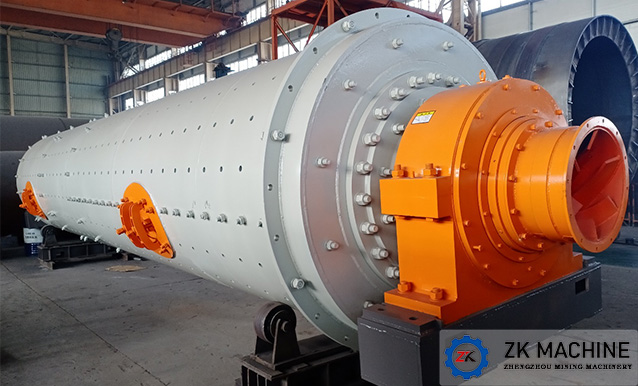

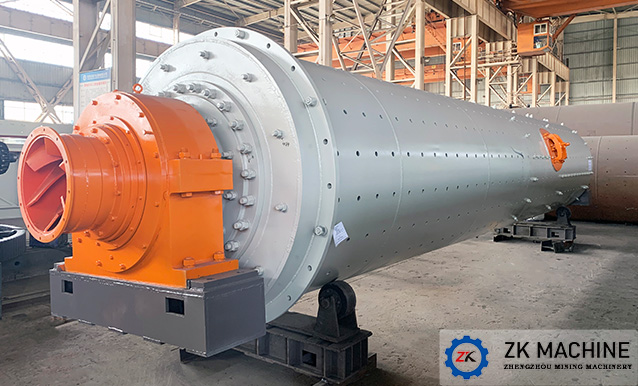

Cement Ball Mill

Model: Ф1.2x4.5 - Ф4.6x10 (m)



Capacity: 1.7 - 210 (t/h)



Grinding Body5 - 278 (t)



Application: Cement Clinker Industry

Whatsapp: +86 18037866379
Send e-mail: mic@zkcorp.com
Leave a Message
Chat Online

Introduction

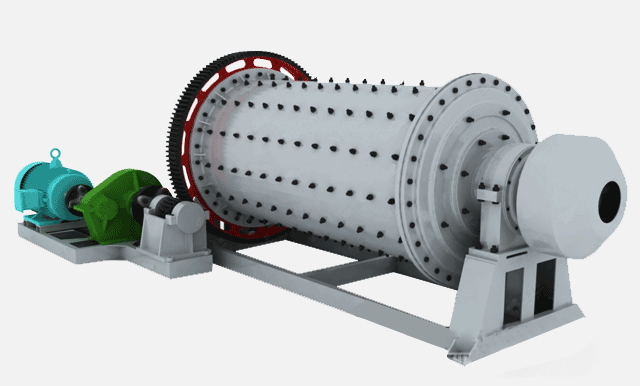

Cement ball mill is the main grinding equipment for finished products and raw materials in the cement factory. And it can also be used for other materials like coal, feldspar, slag, quartz, granite and so on. Ball mill of cement production is capable of dry production and also can be wet. You can simultaneously grinding and drying operation.

Cement ball mill has many outstanding features, such as strong adaptability of materials to production, high grinding ratio, high quality final products and good abrasion resistance, easy to ajust the grinding fineness of the product and so on. And the cement ball mill has the advantages of small investment and reliable operation.



ZK Corp as a professional cement plant machinery manufacturer, also provide complete cement production line with capacity from 100 t/d to 3000 t/d and cement clinker grinding unit with capacity from 50 t/d to 1500 t/d.

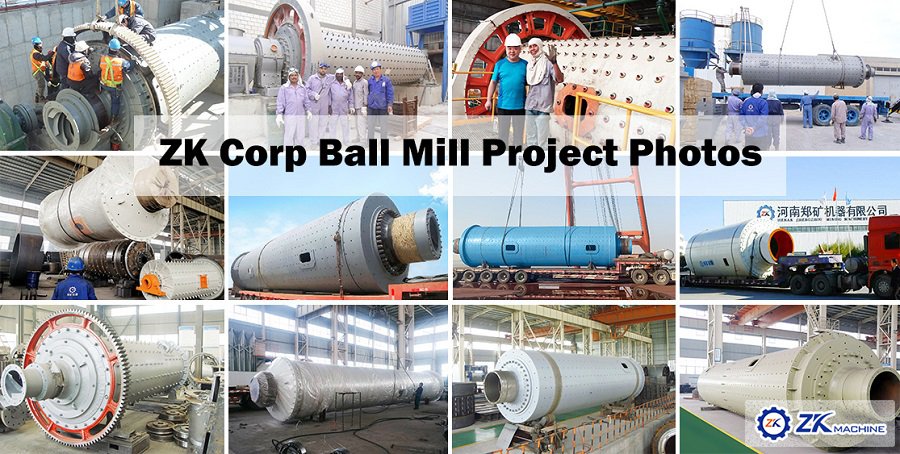

We have rich project experience in many countries, such as Indonesia, Malaysia, Vietnam, Iran, Sri Lanka, Pakistan, New Zealand, Venezuela, Bolivia, Guyana, Russia, Armenia, and many more. In addition to the complete equipment of the ball mill, we also provide ball mill spare parts according to your technical parameters: Ball mill steel balls, liner, shell, bearing, etc. Looking forward to your inquiry, we will give you professional suggestion, perfect service and best price.

Features

1. The finished product has high fineness and large specific surface.
Compared with other enterprises in the same industry, the cement produced by our cement mill has the advantage of high fineness and large specific surface. The cement has excellent quality, high hydration reaction speed, fast strength development, and good intensity after hardening.

2. High efficiency and large output.
We have rich experience on the manufacture of cement mill, and our technology take a leading place in the industry. Compared with other products in the same industry, the output increases by 15-20%, power consumption reduces by 10%. Moreover, the temperature of finished product can reduce by 10-20℃.

Parameter

Model
(m)
Capaicty
(t/h)
Rev. speed
(r/min)
Grinding body
(t)
Motor Reducer Weight
(t)
Model Power (kW) Model Speed ratio
Φ1.2x4.5 1.7 30.3 5 YR250M-6 55 ZD30-8 4.481 13.1
Φ1.5x5.7 4.5 26.34 11 JR127-8 130 ZD40-7 4 25
Φ1.83x6.4 8.5 23.9 18 JR137-8 210 ZD60-8 4.5 35.3
Φ1.83x7 11 24.5 20 JR138-8 245 ZD60-8 4.5 37.2
Φ2.2x6.5 16 21.4 28 JR138-8A 280 ZD70-9 5 48.5
Φ2.2x7.5 16-21 21.4 32 JR158-8 380 ZD70-9 5 53.6
Φ2.4x7 17-19 20.4 36 JR158-8 380 JD560 6.33 78
Φ2.4x8 24-26 20.3 41 JR1510-8/Y180L-8 475/11 JD630 6.33 82.3
Φ2.4x12 35-38 20 62 YR800-8/1180/Y180L-8 800/11 JD800/ZD82.5-7-I 6.33/99.96 120.3
Φ2.4x13 35-38 19.4 69 YR800-8 800 JDX800 /MBY800 6.33
Φ2.6x13 50-55 19.5 83 YR1000-8/1180 1000 JDX800 / MBY800 4.5
Φ2.8x5+3 36-47.8 18.6 56 YR500-8 500 ZDH80 4.5
Φ2.8x10 40-48 19.7 70 YR800-8/1180 800 D110A 37.5
Φ3x7+1.8 44 18 76 JRQ1512-6/Y180L-6 800/5 JD800 /ZD82.5-8-1 7.1 125.3
Φ3x9 28-32/50-55 18.34 78 YR1000-8/1180/Y160M-4 1000/11 NZL1080/ZS110 8/280 160
Φ3x11 45-48 18.7 91 YR800-8/1180 800 ZD100A-41 6.43
Φ3x12 55-58 18 100 YR1250-8/1430 1250 JS110-A 41.1
Φ3.2x9 65 17.6 88 YR1250-8/1430 1250 JS110-A 41.28 189.5
Φ3.2x10 55 17.6 98 YR1000-8/1180 1000 JS110 41.5
Φ3.5x10 73 16.8 118 YR1250-8 1250 JS110-A   153.7
(Without motor)
Φ3.6x7.5+2.5 90 17.3 125 YRKK710-8 1400 JDX900 7.1 220
Φ3.8x7.5 85 16.4 103 YRKK710-8/Y200L2-6 1400/22 NBY800/YNS620-90 5.6/90 182
Φ3.8x7.5 90 17 103 YR710-8 1600 JDX900   218
(Without motor)
Φ4.6x10+3.5 210 15 278 YRKK1000-8 3550 JQS3500   358
(Without motor)
