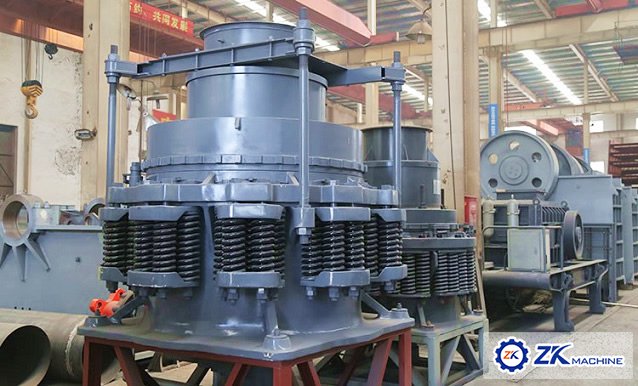

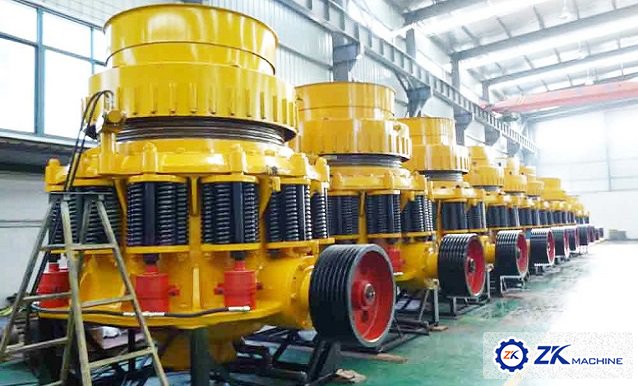

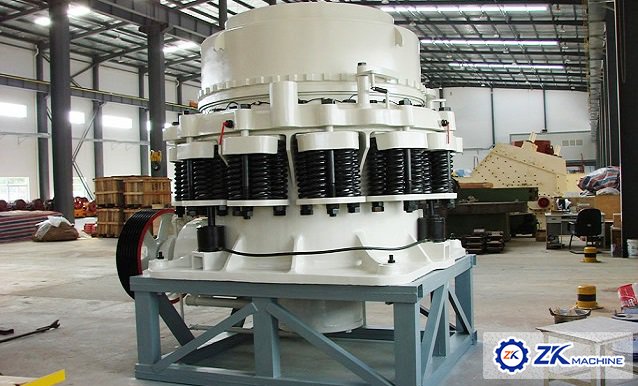

Cone Crusher

Model: PYB, PYD



Max. feeding size: 50 - 145 mm



Motor power: 30 - 280 kW



Application: iron ore, granite, limestone, quartzite, sandstone, cobblestone, etc.

Whatsapp: +86 18037866379
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

Introduction

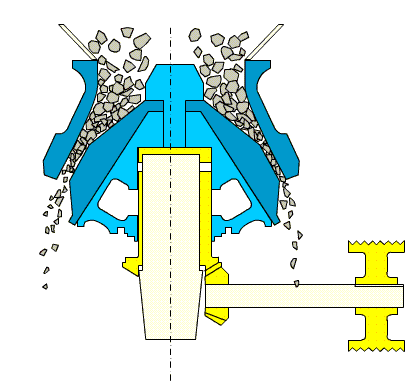

Cone crusher is generally used as a secondary crusher in a crushing circuit. Pre-crushed product (usually 3in minus depending on the cone crusher model) is fed through the top of the cone crusher and flows over the mantle. The vertical cone crusher drive shaft rotates the mantle eccentrically below the concave, or bowl liner, squeezing the product and crushing it between the mantle and concave. Cone crushers are usually run on belt drives driven by an electric motor or diesel engine. Cone crushers are used extensively throughout the aggregate and mineral processing industry.

ZK-Famous cone crusher manufacturer
According to demand on rock cone crushers of customers, it is developed based on laminated crushing principle and conceptual design of “more crushing and less grinding”; thus this new type of cone crusher – Hydraulic cone crusher is integrated with high wobble frequency, optimal cavity shape and reasonable stroke. This series of efficient cone crusher has more reasonable and perfect structure and more advanced technology. As the professional mining machinery manufacturer,  Cone crushers are used and welcomed in China cone crusher market and even worldwide.

The material of cone crusher:
1. Material of main frame steel plate is Q235.
2. Material of main shaft is 40Cr.
3. Material of mantle and concave is ZGMN13.
4. Material of springs is 60Si2Mn.

Features

1. Hydraulic Clearing & Hydraulic Adjustment, high degree of automation to reduce downtime

2. High Productivity & Cost Effective

3. Standard Replacement Parts, Quick & Easy Maintenance

4. The highest crushing force of all the cone crushers, pyramid broken, perfect of product shape;

5. Unbeatable availability and robust design

6. Up to 20% lower power consumption than with other cone crushers

Parameter

Model

Diameter of  crushing  cone
(mm)

Max.  feeding  size
(mm)

Width of  discharge  opening
(mm)

Processing  capacity
(t/h)

Motor  power
(kw)

Swing  frequ-ency  of main  shaft

Weight
(t)

Dimensions (L*W*H)
(mm)

PYB

600

600

65

12-25

40

30

356

5

2234×1370×1675

PYD

35

3-13

12-23

5.5

2234×1370×1675

PYB

900

900

115

15-50

50-90

55

333

11.2

2692×1640×2350

PYZ

60

5-20

20-65

11.2

2692×1640×2350

PYD

50

3-13

15-50

11.3

2692×1640×2350

PYB

1200

1200

145

20-50

110-168

110

300

24.7

2790×1878×2844

PYZ

100

8-25

42-135

25

2790×1878×2844

PYD

50

3-15

18-105

25.3

2790×1878×2844

PYB

1750

1750

215

25-50

280-480

160

245

50.3

3910×2894×3809

PYZ

185

10-30

115-320

50.3

3910×2894×3809

PYD

85

5-13

75-230

50.2

3910×2894×3809

PYB

2200

2200

300

30-60

59-1000

280-260

220

80

4622×3302×4470

PYZ

230

10-30

200-580

80

4622×3302×4470

PYD

100

5-15

120-340

81.4

4622×3302×4470
