Introduction

Rotary Drum Granulator machine is a critical machine in granulation production process. Its quality decides directly the efficiency and quality of end product. Pellets produced via granulator machine are a little more dense, and more sepherical than other agglomeration methods. It is applicable to big scale granulation production of high, medium and low consistency.

We offer various configurations to suit your granulation processing needs, our rotary drum granulator is widely used in organic fertilizer, inorganic fertilizer, ceramsite sand, fly ash, cement industry, etc.

Features

(1) The granulating ratio of the machine is up to 70%. The small part of feeding back material can be granulated again.

(2) The cylinder body adopts rubber plate lining structure which makes it difficult for raw material to agglomerate.

(3) It can remove scars and peel burls automatically.

(4) It has the advantages of high intensity of granules, high quality, corrosion-resistant, abrasion proof, low energy consumption, long service lifespan, easy maintenance and operation, etc.

Parameter

Specification (m)	Shell				Capacity (t/h)	Power (kw)
Specification (m)	I.D. (mm)	Length (mm)	Slope (°)	Rev (r/min)	Capacity (t/h)	Power (kw)
Φ1.4×4	1400	4000	2.5	15.05	5	11
Φ1.6×6	1600	6000	2.5	12	7	15
Φ1.8×6	1800	6000	2.5	11.5	8	15
Φ2.0×7	2000	7000	2.5	10.8	14	30
Φ2.2×8	2200	8000	2.5	10.85	20	37
Φ2.4×8	2400	8000	2.5	9.6	25	55
Φ2.8×8	2800	8000	1.5	6.5	35	90

Related Cases MORE >

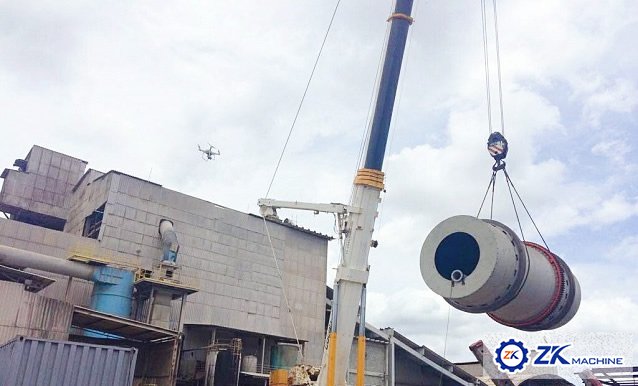

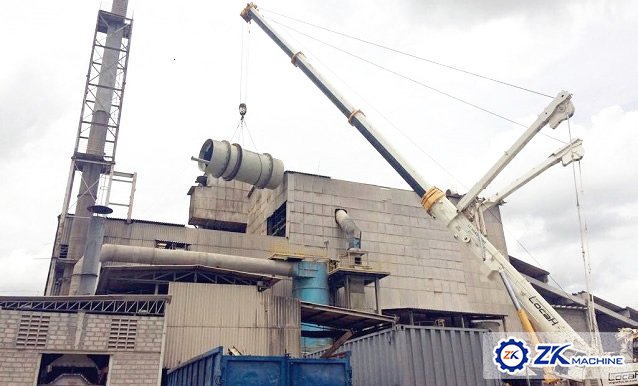

Φ3×11m Rotary Granulator for NPK Fertilizer Plant in Brazil
