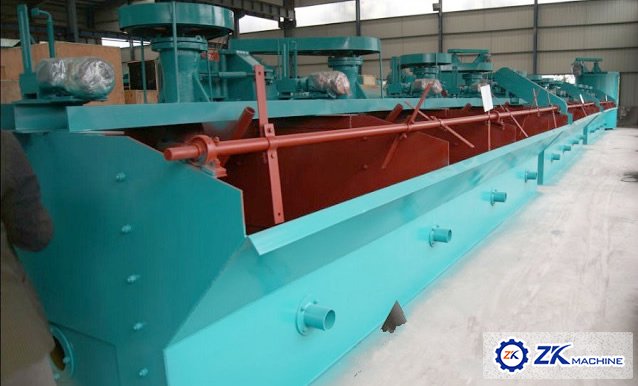

Flotation Machine

Model: XJ, SF, XCF, KYF, BF


Volume: 0.35 - 100 (m3)


Capacity: 0.18 - 60 (m3/min)


Application: mineral, ore beneficiation plant

Whatsapp: +86 18037866379
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

Introduction

Flotation Machine is mainly used for separating copper, zinc, lead, nickel, gold and other non-ferrous metals, and  it can also be used for ferrous metals and non-metallic rough and refined. Our company mainly produces three kinds of flotation machine as follows:

- Mechanical Agitating Flotation Equipment With Auto Air Suction
New structure of impeller is backwards inclined double impellers equipped with honeycomb duct and dummy bottom. Therefore, the slurry in the tank will cycle upward and downward in a fixed flow manner, which is helpful to the suspension of those coarse particles. Air and slurry are naturally sucked without need for foam pump.

- Mechanical Agitating Aeration Flotation Equipment Set
Models XCF and KYF are enforced aeration flotation machine. It has a smaller diameter of impeller, thus lower peripheral speed, saving 30-50% of power. Because and air distribut or is equipped in the tank, air is evenly dispersed. The impeller acts as a centrifugal pump, so as to make the solid particles suspending. The tank is mode as u type, reducing sand settlement to the least .Due to reasonable design of the impeller structure and the impeller space, impeller wearing is even, so , the service life of the impeller and stator are extended. Model KYF is unable to spontaneously suck slurry, while has low power consumption. In contrast, model XCF has the ability to automatically suck slurry, and may be allocated horizontally without need for foam pump, but consumes more power than model KYF. Therefore, model XCF and model KYF are combined into a set, i.e., XCF as the sucking tank, and KYF as the direct tank. The combined set can be arranged horizontally without foam pump either.

- Mechanical Agitating Flotation Machine with Auto Air Suction
The BF flotation machine impeller is composed of the closed double frustum, may produce the strong slurry under to circulate, its characteristic: (1) The suction intensity is big, the power loss is low. (2) Each trough has the suction, attracts the thick liquid and the flotation process function, from becomes the flotation process return route, does not need any supporting facility, the level disposition, is advantageous for the flow change. (3) The slurry circulation is reasonable, can maximum limit reduce the coarse sand precipitation. (4) Is equipped with the slurry surface automatic control and the electrically controlled installment, the adjustment is convenient.

Features

1. Self-absorption of air.
2. Good cycling property of pulp.
3. Flotation machine's suction volume is relatively stable.
4. Medium mixing strength and good suspension of solid particles.
5. The liquid level of the flotation machine is stable and it has low power consumption.


Parameter

XCF/KYF Series Flotation Equipment

Model

Volume (m3)

Cell Size (mm)

Impeller Dia. (mm)

Impeller Speed (r/min)

Capacity (m3/min)

Power (kw)

XCF/KYF

1

1000x1000x1100

400/340

358/281

0.2-1

5.5/4/1.1

XCF/KYF

2

1300x1300x1250

470/410

331/247

0.4-2

7.5/5.5/1.1

XCF/KYF

3

1600x1600x1400

540/480

266/219

0.6-3

11/7.5/1.5

XCF/KYF

4

1800x1800x1500

620/550

215/200

1.2-4

15/11/1.5

XCF/KYF

6

2050x2050x1750

620/550

215/200

3-6

15/11/1.5

XCF/KYF

50

4400x4400x3500

1200/1030

134

10-40

90/75/1.5

XCF/KYF

70

5100x5100x3800

1120/1120

121

13-50

90/90/1.5

XCF/KYF

100

5900x5900x4200

1260/1260

-

20-60

132/110/1.5


BF Series Flotation Equipment

Model

Volume (m3)

Cell size (mm)

Impeller Dia. (mm)

Capacity (m3/min)

Power (kw)

BF-0.37

0.37

740x740x750

286

0.2-0.4

1.5/1.1

BF-0.65

0.65

850x950x900

300

0.3-0.7

3/1.1

BF-1.2

1.2

1050x1150x1100

450

0.6-1.2

5.5/1.1

BF-2.0

2

1400x1450x1120

500

1-2

7.5/1.1

BF-2.8

2.8

1650x1650x1150

550

1.4-3

11/1.5

BF-4

4

1900x2000x1200

650

2-4

15/1.5

BF-6

6

2200x2350x1300

700

3-6

18.5/1.5

BF-8

8

2250x2850x1400

760

4-8

30/1.5

BF-10

10

2250x2850x1700

760

5-10

30/1.5

BF-16

16

2850x3800x1700

850

8-16

37/1.5

BF-20

20

2850x3800x2000

850

10-20

37/1.5

BF-24

24

3150x4150x2000

920

12-24

45/1.5
