Model: GX150 -- GX600
Max Capacity: 255.9 (m³/h)
Rov. Speed: 20 - 90 (r/min)
Conveying Material: Coal, slag, cement, clay powder, sand, grains, gravel, scrap iron, etc.

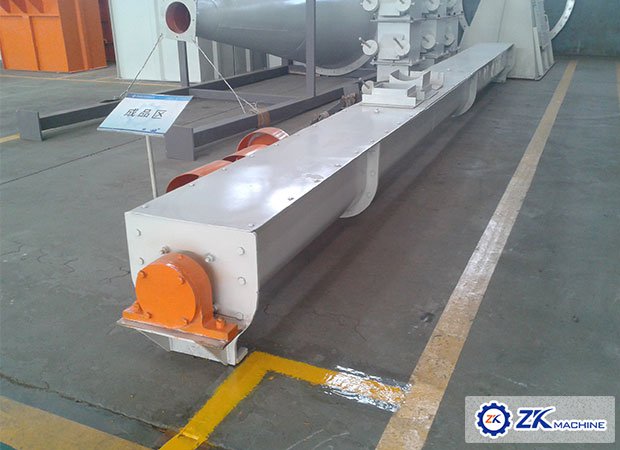

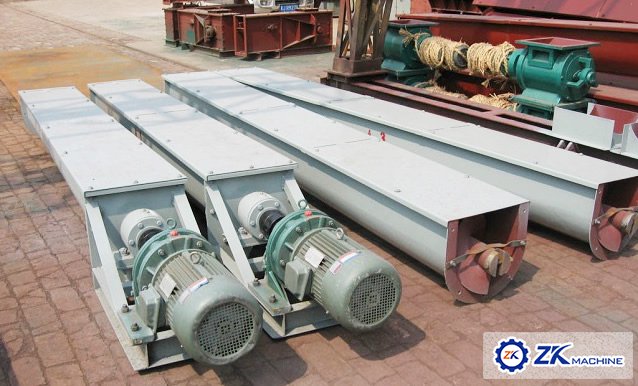

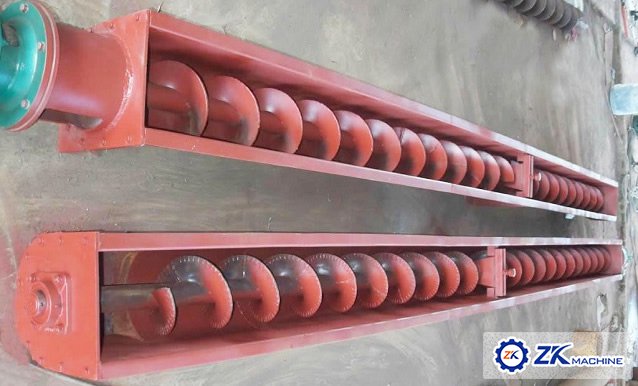

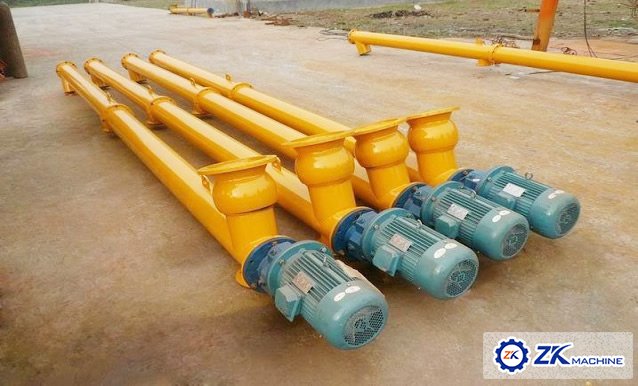

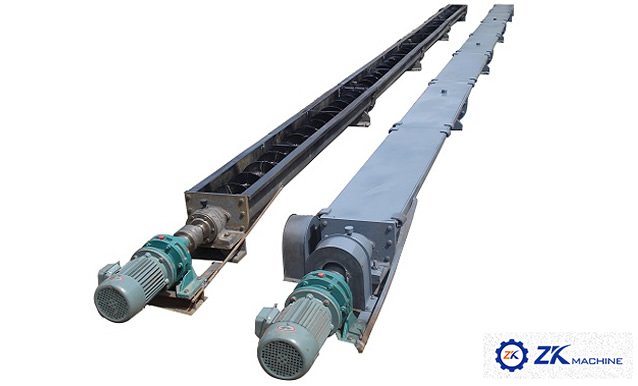

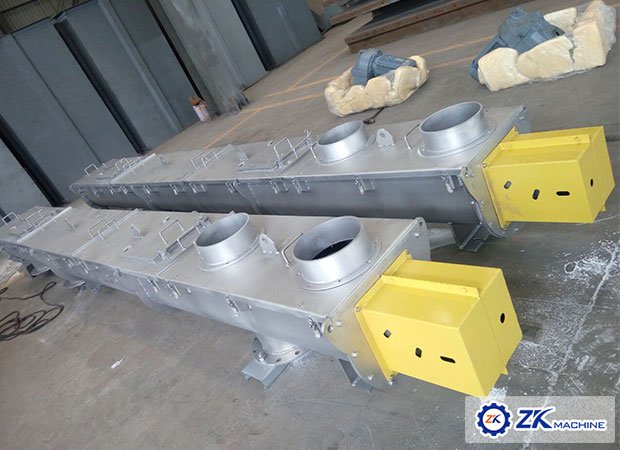

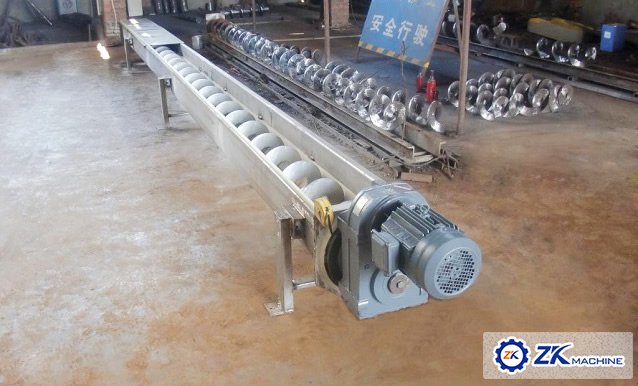

GX Type Screw conveyor is a kind of continuous conveying equipment without flexible traction mechanism. It mainly used to convey all kinds of powdery, granular bulk materials, such as clay powder, coal, cement, sand, grains, and small lump coal, gravel, scrap iron etc. But not suitable for sticky agglomerate, perishable materials.
Screw conveyor has horizontal and inclined arragement. It can work with other conveying device to complete the concentrated transportation, distribution, agitation, mixing, dehydration, dosing, unload, stacking operation etc.
|
Model |
Screw dia. (mm) |
Pitch (mm) |
Rev. Speed (r/min) |
Capacity (m³/h) |
Conveying Distance |
|
GX200 |
200 |
200 |
50～90 |
7～12 |
2～15 |
|
GX250 |
250 |
200 |
45～90 |
10～20 |
2～20 |
|
GX300 |
300 |
300 |
40～80 |
15～30 |
2～20 |
|
GX400 |
400 |
300 |
35～70 |
25～55 |
2～25 |
|
GX500 |
500 |
400 |
35～65 |
45～90 |
2～25 |
|

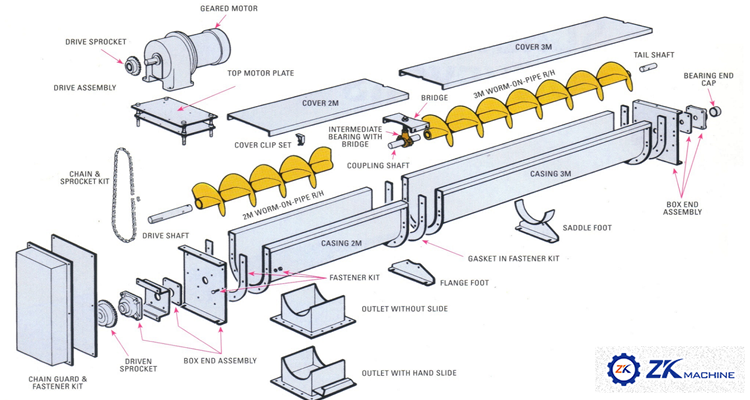

Wearing Parts List： |
|||||
|
No. |
Name |
Quantity |
No. |
Name |
Quantity |
|
1 |
Screw Blade |
1 |
4 |
Shaft |
4 |
|
2 |
Bearing |
2 |
5 |
Transmission Shaft Coupling |
1 |
|
3 |
Nylon Pin |
8 |
6 |
Reducer Coupling |
1 |
