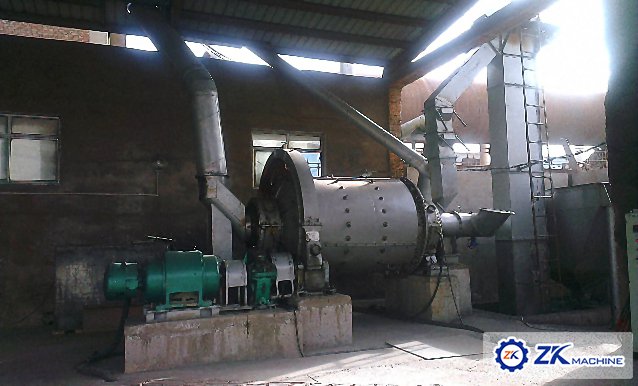

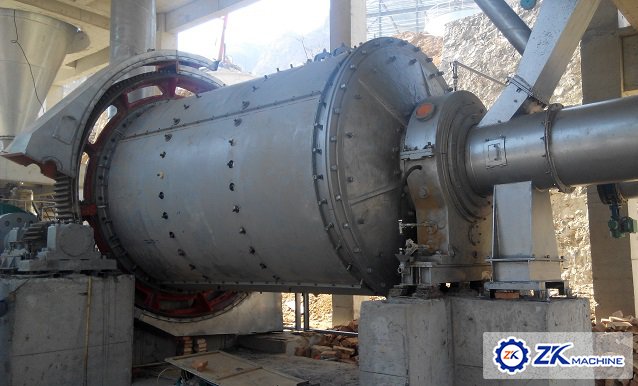

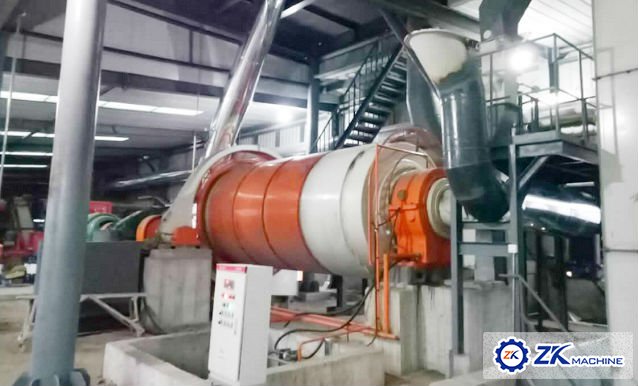

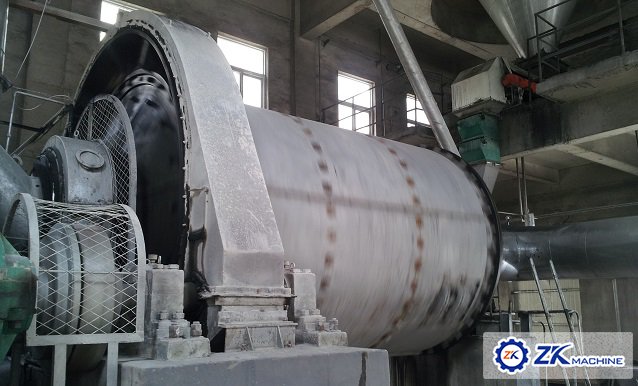

Air-swept Coal Ball Mill

Type: Coal Ball Mill



Capacity: 1.4 - 16 (t/h)



Increase Production: 10%-20%

Application: Power Plant, Cement Plant, etc.

Whatsapp: +86 18037866379
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

HOT PRODUCTS

CONTACT US

E-mail:  mic@zkcorp.com

Whatsapp:+86 15237956296

Introduction

Air swept coal ball mill is an ideal coal processing equipment that can both grind and dry, with characteristics of high efficiency, energy saving, environmental protection, 8% and above of its grinding coal can pass through the 200 mesh screen, and the water content can be under 2%, it is an ideal grinding equipment for coal powders that are used in industrial furnaces and rotary kilns and other equipment.

Our Service:
Packaging & Delivery


Technical Support

Successful Cases

Features

1. Compared with the ordinary ball mill, it has advantages of higher capacity, more convenient operation, safer usage, and more reliable performance.
2. This coal mill can reach your demand for grinding coal into flavour.
3. The primary air flow to the furnace is fed through the mill, with the purpose of heating and lift the coal particles out of the mill and into the furnace. If the the particles are too heavy they will drop to the bottom of the mill and will be pulverized once more.
4. The coal particles are heated to 100 degrees Celsius. The temperature of the primary air flow is manipulated for controlling this temperature measured as a temperature in the mill at the exit.
5. The primary air temperature is controlled by controlling the position of an air mixer,which mixes heated outside air and cold outside air.

Parameter

Specification
(mm)
Weight
(t)
Canister rev
(r/min)
Capacity
(t/h)
Motor Size (mm)
Model Power (kw) Voltage (v)
Φ1200×2400 4.8 32 1.4-2 Y280M-8 45 380 6520×2850×2540
Φ1500×3000 8 28.8 2-3 JR125-8 95 380 7604×2630×2698
Φ1700×2500 7.5 24.5 3∼5 JR116-6 95 380 6998×3700×2628
Φ2200×3000 13 22 5∼6 JR136-8 180 380 7680×4389×3950
Φ2200×4400 - 21 8-9 YRKK4501-6 250 380 7880×4420×3950
Φ2200×5800 - 21 5.5-7 Y4005-8 280 380 9060×4480×3950
Φ2400×4750 22 20 10∼12 YR400-8 280 6000 7770×5266×4024
Φ2400×4000+2000 - - 10-11 YRKK450-8 250 6000 10600×5500×4024
Φ2400×4500+2000 - - 10-12 YRKK500-8 280 6000 11200×5500×4024
Φ2500×3900 - - 14 JR138-8 280 6000 8770×6266×4870
Φ2600×5250+2250 - - 9-10 YRKK500-8 400 6000 -
Φ2800×5000+3000 - - 13-13.5 Y5001-8 500 6000 -
Φ2900×4700 35 18.6 16 JSQ1512-6 570 6000 8930×6179×4440
