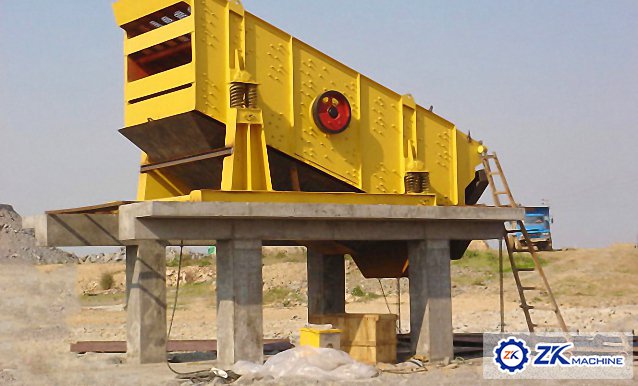

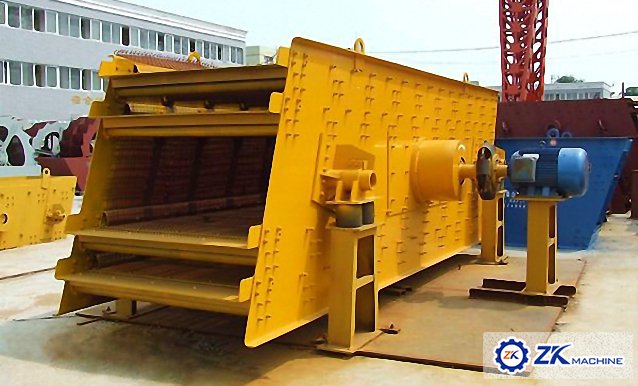

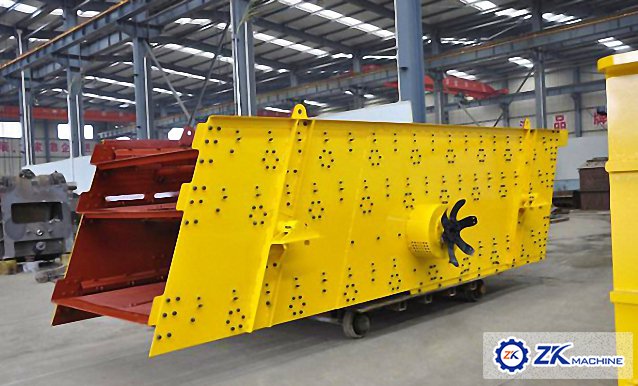

YA Circular Vibrating Screen

Screen Layer: 1-2



Screen area: 7.5-14(m2)



Capacity: 150-1200(t/h)



Applied material: Ore dressing, building material

Whatapp: +86 13938423129
Send e-mail: vip@zkcorp.com
Leave Message
Chat Online

PRODUCTS LIST

HOT PRODUCTS

CONTACT US

E-mail：  vip@zkcorp.com

Whatsapp：+86 13938423129

Send Message
Chat Now
YA Vibrating screen use axis eccentricity as exciting force, which make screen body move approximate circularly. It has high screening efficiency, large process volume. It can be used screen various dry granulate material and small lump material. It has heavy and light type. The screen can be single layer, double, multilayer. Screen mesh can use metal wire mesh, rod, cast, welding, punching hole according material property.

Application:
It is used for classifying granulate material and small lump material inOre dressing, building material, electricity, chemical engineering.

Features

1. Motor and vibration exciter use belt drive, stable running and less impact for motor

2. High screening efficiency, large process volume.

3. Screen mesh is Wear Resistance, fatigue resistance, high classification precision.

4. Use steel spiral spring as damping device, reliable performance, long service life.

5. Use axis eccentricity as exciter, strong exciting force, which can make stuck material jump out, avoid mesh block.

6. Angle of screen mesh can be change to control process volume.

Parameter

Model

Screen Mesh

Feeding Size（mm）

Capacity（t/h）

Vibrating

Frequency（r.p.m）

Power（kW）

Weight（kg）

Lay

area（㎡）

Mesh Size（mm）

YA1848

1

7.5

6～50

≤200

150～525

845

15

6289

2YA1848

2

7.5

6～50

≤200

150～525

845

15

6945

YAH1848

1

7.5

30～150

≤50

250～1000

755

13

7122

2YAH1848

2

7.5

30～150

≤400

250～1000

755

15

7740

YA2148

1

10

6～50

≤210

180～630

748

18.5

9287

2YA2148

2

10

6～50

≤210

180～630

748

22

10532

YAH2148

1

10

13～200

≤400

270～1200

708

18.5

10430

2YAH2148

2

10

30～150

≤400

270～1200

708

22

11190

YA2160

1

12

6～50

≤200

230～800

748

18.5

9926

2YA2160

2

12

6～50

≤200

230～800

748

22

11249

YAH2160

1

12

30～150

≤400

350～1500

708

30

12490

2YAH2160

2

12

30～150

≤400

350～450

708

30

13858

YA2448

1

11

6～50

≤200

200～700

748

18.5

9834

YAH2448

1

11

6～50

≤400

310～1300

708

30

11830

2YAH2448

2

11

30～150

≤400

310～1300

708

30

13012

YA2460

1

14

6～50

≤200

260～780

748

30

12240

2YA2460

2

14

6～50

≤200

260～780

748

30

13583

YAH2460

1

14

30～150

≤400

400～1700

708

30

13096

2YAH2460

2

14

30～150

≤400

400～1700

708

30

14420
