YK series Vibrating Screen

Screen Layer: 2-4



Screen area(m2): 2.88-18



Capacity: 20-900(m3/h)



Applied material: Sand, quarry, coal, minerals, building materials, electrical industry, chemical industry, etc.

Whatapp: +86 13938423129
Send e-mail: vip@zkcorp.com
Leave Message
Chat Online

PRODUCTS LIST

HOT PRODUCTS

CONTACT US

E-mail：  vip@zkcorp.com

Whatsapp：+86 13938423129

Send Message
Chat Now

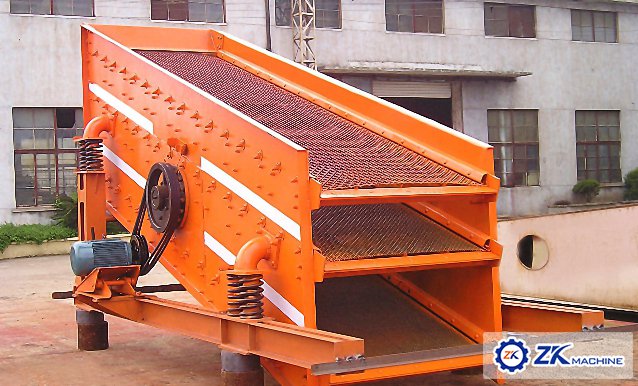

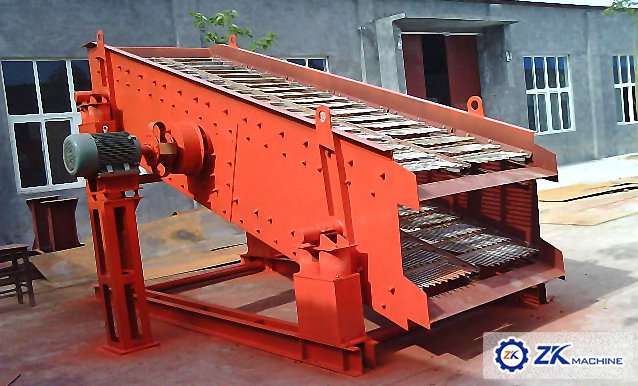

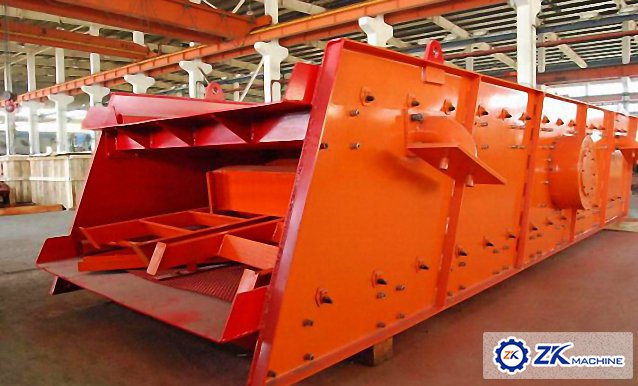

YK series Vibrating Screen is the high efficiency screen that manufacture with German technology. It is suitable for screening stones in quarry, and also applicable for Coal dressing, Ore concentration, Construction, Electricity and Chemical industry etc. YK series vibrating screen have adopt eccentric block as vibrating force and make screen box operating circular motion, which have features of advanced technology, strong vibrating strength, high processing ability, high screening efficiency etc. Screen will adopt different structure type with single layer, double layer and multi-layer according to different screening requirement. Screen with variable material and structure can be selected for different material, also different fixed type of screen can be applicable for different screen and working condition.

Application:
The screen can be applied to material classification for Electricity, Chemical, Metallurgy, Construction, Light industry, Grain and Mine industry etc.

Features

1. Adopt tire coupling, flexible connection with smooth operation and low compacting to motor.

2. Adopt inclined structure with small amplitude and high frequency, which have features like high screening efficiency,
    large processing ability, long life time, low energy consumption and low noise.

3. The material of screen is wear-resistance, fatigue-resistance and corrosion-resistance, also have features like high aperture ratio, light weight and high classification accuracy.

4. Adopt steel spiral spring as vibration damper, which have reliable performance and long life time.

5. Flexible for usage, processing capacity can be control by adjusting screen inclination.

Parameter

Model

Screen Layer

Screen Size(m2)

Vibration Frequency(v.p.m)

Double

-amplitude(mm)

Capacity

(m3/h)

Power

（kW）

Overall Size(mm)

Weight

(kg)

2YK1224

2

2.88

970

6～8

20～120

5.5

2673×2382×2027

1750

YK1235

1

4.2

970

6～8

20～150

5.5

3710×2464×1450

1729

2YK1235

2

4.2

970

6～8

20～150

7.5

3705×2393×2339

2476

3YK1235

3

4.2

970

6～8

20～150

7.5

3621×2521×2581

3158

4YK1235

4

4.2

970

6～8

20～150

11

3510×2521×2830

4160

YK1545

1

6.75

970

6～8

20～150

11

4904×3044×2179

3319

2YK1545

2

6.75

970

6～8

20～150

15

5042×3090×3165

5308

3YK1545

3

6.75

970

6～8

20～150

15

4972×3090×3395

5915

4YK1545

4

6.75

970

6～8

20～150

18.5

4915×3155×3804

7260

YK1548

1

7.2

970

6～8

20～150

11

5190×3044×2186

3319

2YK1548

2

7.2

970

6～8

20～150

15

5265×3140×3208

5284

3YK1548

3

7.2

970

6～8

20～150

15

5200×3090×3440

6186

4YK1548

4

7.2

970

6～8

20～150

18.5

5200×3155×3849

7284

YK1860

1

10.8

970

6～8

32～350

15

6302×3365×2992

4651

2YK1860

2

10.8

970

6～8

32～350

18.5

6020×3455×3756

6195

3YK1860

3

10.8

970

6～8

32～350

18.5

6020×3455×4180

7613

4YK1860

4

10.8

970

6～8

32～350

22

5963×3505×4463

8650

YK2160

1

12.6

970

6～8

66～720

18.5

6302×3730×2992

4917

2YK2160

2

12.6

970

6～8

66～720

22

5966×3958×3975

6856

3YK2160

3

12.6

970

6～8

66～720

30

5966×3958×4400

9112

4YK2160

4

12.6

970

6～8

66～720

30

5966×3958×4780

11405

YK2460

1

14.4

970

6～8

75～750

18.5

6302×4155×2992

5243

2YK2460

2

14.4

970

6～8

75～750

30

6027×4308×3975

8503

3YK2460

3

14.4

970

6～8

75～750

30

6027×4308×4400

10400

4YK2460

4

14.4

970

6～8

75～750

30

5966×4308×4780

12068

2YK2475

2

18

970

6～8

120～900

30

7812×4308×4642

10709

3YK2475

3

18

970

6～8

120～900

37

7718×4393×5033

13400

4YK2475

4

18

970

6～8

120～900

45

7718×4494×5361

15500

YK3060

1

18

970

6～8

200～900

30

6302×4943×3108

14052

2YK3060

2

18

970

6～8

200～900

37

6207×4943×3985

17185

3YK3060

3

18

970

6～8

200～900

45

6207×4943×4485

19200

4YK3060

4

18

970

6～8

200～900

45

6207×4943×4785

21080
