Introduction

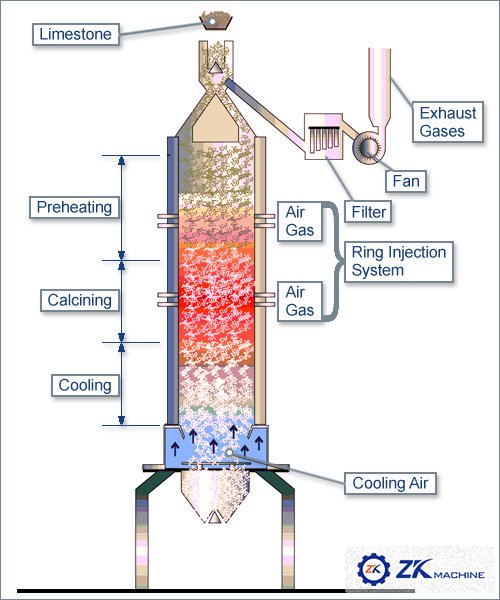

Lime vertical shaft kiln, is used for calcination limestone, it's the most important equipment in lime production line. Due to has low energy consumption, less cover area, less investment, wide applicability fuel, and more advantages, it was widely used in metallurgy, construction materials, calcium carbide, nanometer calcium carbonate, aerated concrete, sugaring, etc. It is especially suitable for the production Nanometer calcium carbonate. Investigate its reason that the concentration of CO2 in flue gas jet can reach more than 35%, CO2 recovery cost is low.

The vertical kiln was manufactured by ZK Corp with modern new technology, which is an environment protection, save energy, higher machanization and automaticity, quite modern lime kiln. Because it adopts the modern technology, make full use the cheap energy, especially pollution of gas for environment harmful( such as conventer gas, blast furnace gas, calcium carbide furnace tail gas) as the energy, turn waste into wealth. Thus will protect the environment, and produce the high quality lime with lowest cost. To use this new technology enterprise, economic benefits have increased significantly.

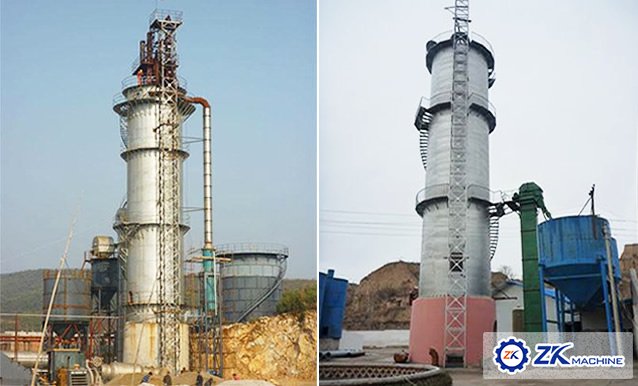

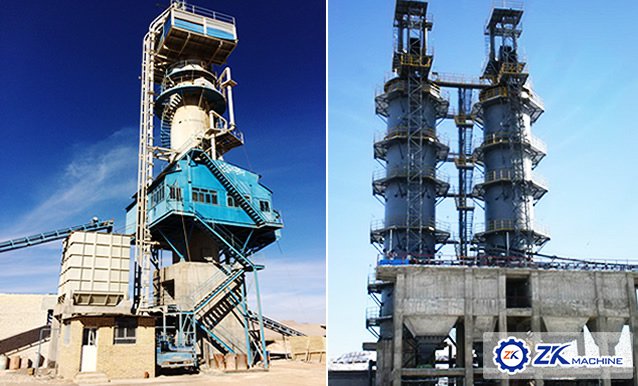

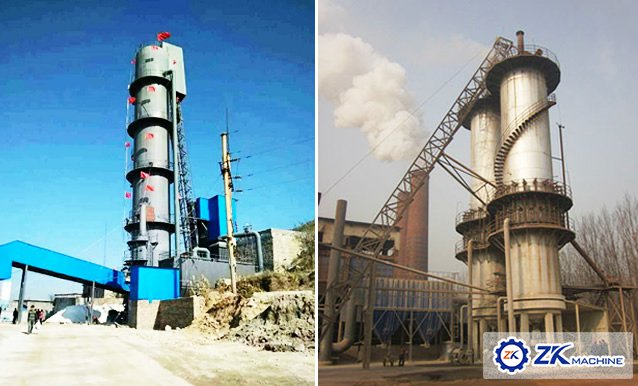

We have built many kilns, and we will take you to visit ours kiln when you come to China.

Features

1. Simplicity of construction and operation, low initial cost.
2. High thermal efficiency & high volumetric efficiency.
3. Minimum decrepitation of solid products and minumum erosion of refrectory linings due to slight movement of particles relative to each other.
4. Less cover area, because the vertical kiln in vertical layout, feeding use the single bucket elevator in high angle layout, each functional area is decorated compact, greatly reduces the cover area.
5. The shell of kiln use four layer refractory in vertical masonry, good effect of thermal insulation, the temperature of shell will be controlled higher 60℃ than environment, save energy remarkably.

Parameter

Technical Parameters Of Vertical Klin (Mixed Fuel)
Capacity (t/d)	Effective Volume (m3)	Effective Height (m)	Effective Section Dia. (m)	Limestone Size (mm)	Heat Consumption (kJ/kg)	CaO (%)	Activity (mL)
100	98	20	Ø2.5	30~60/40~80	<4600	>90	>300
120	141	20	Ø3.0	30~60/40~80	<4600	>90	>300
150	202	21	Ø3.5	30~60/40~80	<4500	>90	>300
200	301	24	Ø4.0	30~60/40~80	<4500	>90	>300
300	397	25	Ø4.5	30~60/40~80	<4400	>90	>300
400	491	25	Ø5.0	30~60/40~80	<4200	>90	>300
500	735	26	Ø6.0	30~60/40~80	<4200	>90	>300
Remarks: All above data are for reference only.
Technical Parameters Of Vertical Lime Kiln (Fuel: Gas)
Capacity (t/d)	Effective Volume (m3)	Effective Height (m)	Effective Section Dia. (m)	Limestone Size (mm)	Heat Consumption (kJ/kg)	CaO (%)	Activity (mL)
50	70	20	Ø2.0	30~60/40~80	<4600	>90	>300
70	80	20	Ø2.5	30~60/40~80	<4600	>90	>300
80	100	20	Ø2.5	30~60/40~80	<4500	>90	>300
100	120	20	Ø2.7	30~60/40~80	<4500	>90	>300
120	140	20	Ø3.0	30~60/40~80	<4400	>90	>300
130	150	21	Ø3.0	30~60/40~80	<4200	>90	>300
150	200	20	2.5×4.5	30~60/40~80	<4200	>90	>300
Remarks: Above data are for reference only, and suitable for Vertical Kiln which use low heat fuel. Utilization coefficient of Vertical Kiln which use high heat fuel is higher.
