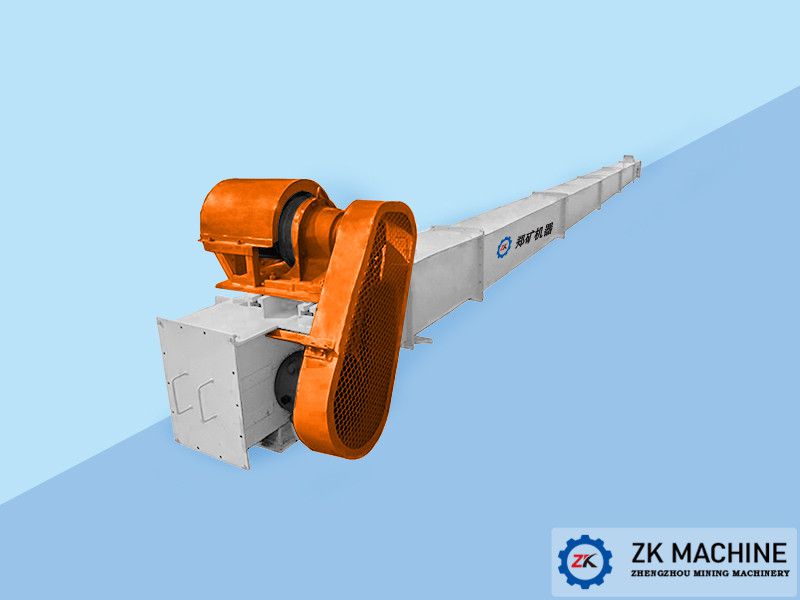

FU type chain scraper conveyor from ZK Corp

Date:2022-07-29 14:36:44 Author:admin Views: 161
FU type chain scraper conveyor is used for horizontal or inclined (≤15℃) conveying powder and granular products. It is widely used in industries such as building materials, construction, chemical industry, thermal power, food processing, mining, machinery, smelting, transportation, ports and transportation.
The working principle is: there is mutual internal friction and internal pressure between the particles of the bulk material. They are driven by the movement of the conveyor chain in the machine groove of the chain conveyor and are driven by the same direction of movement, which increases the internal friction and pressure between the bulk materials. When the internal friction force is greater than the friction force between the material and the wall of the machine groove, the material moves forward under the drive of the conveyor chain, and the increased internal force ensures the stable state between the material layers, making it form an overall continuous flow. When the ratio of the height of the material layer to the width of the machine groove meets certain conditions, the logistics is stable, and the material speed is approximately equal to the chain speed.

Main features:
1. Large conveying capacity, high-efficiency conveyor allows conveying a large amount of materials in a small space, with a conveying capacity of 6-600m³/h.
2. The conveying energy consumption is low. With the help of the internal friction between the materials, it becomes the pulling force that pushes the materials, which saves 50% of electricity compared with the screw conveyor. It is energy-saving and durable, with low use cost and less maintenance. It can ensure the normal operation of the main engine to increase output, reduce consumption and improve economic benefits.
3. Excellent sealing and safety, the fully sealed casing makes the dust seamlessly drillable, safe in operation, and reliable in operation.
4. Long service life. The conveyor chain made of alloy steel after advanced heat treatment has a normal service life of more than 5 years, and the life of the rollers on the chain (according to different materials) ≥ 2-3 years.
5. The process layout is flexible. It can be arranged on an elevated, bottom surface or pit, or can be installed horizontally or on a slope (≤15°C), or can be installed horizontally and on a slope with the same machine, with multi-point feeding and discharging layout.
6. Zhengkuang Machinery Co., Ltd. has a complete range of chain conveyors. The FU series includes FU150, FU200, FU270, FU350, FU410, FU500, FU600, and FU700.

Warmly welcome customers in need to visit and purchase.
